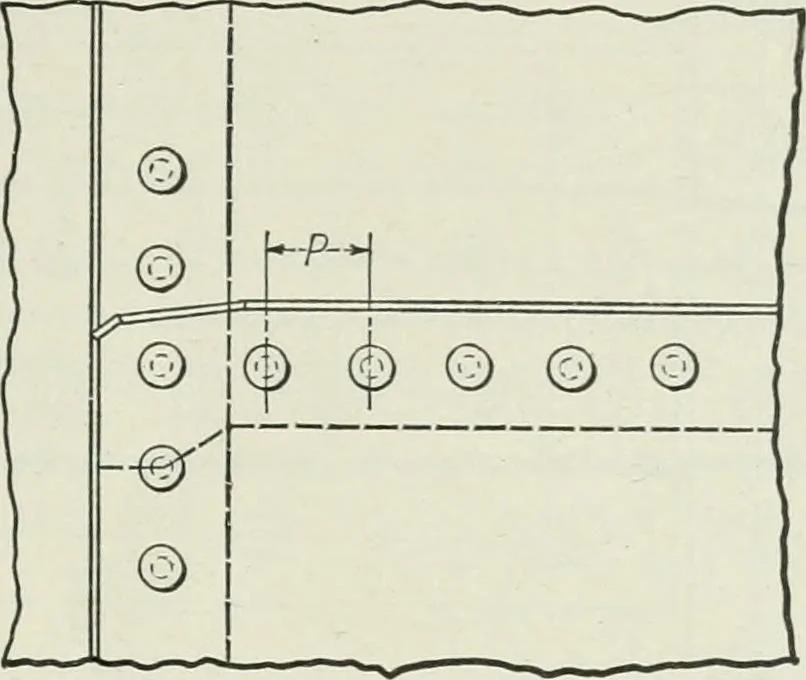

ing strength of mild steel, as given in Par. 12 of these rules.- n = number of rivets in single shear in a unit of length of joint.N = number of rivets in double shear in a unit of length of joint. 75. Example. Lap joint, longitudinal or circumferential, single-riveted.A = strength of solid plate =… … Pig. 36. Lap Joint, Longitudinal or Circumferential, Single-Riveted. Divide B, C, or D (whichever is the least) by A, and the quotient will be the efficiency of a single-riveted lap joint as shown in Fig. 36. T.S. = 55,000 lb. < = M in. = 0.25 in. p = l5^ in. = 1.625 in. d = H in- = 0.6875 in. a…
