Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 163

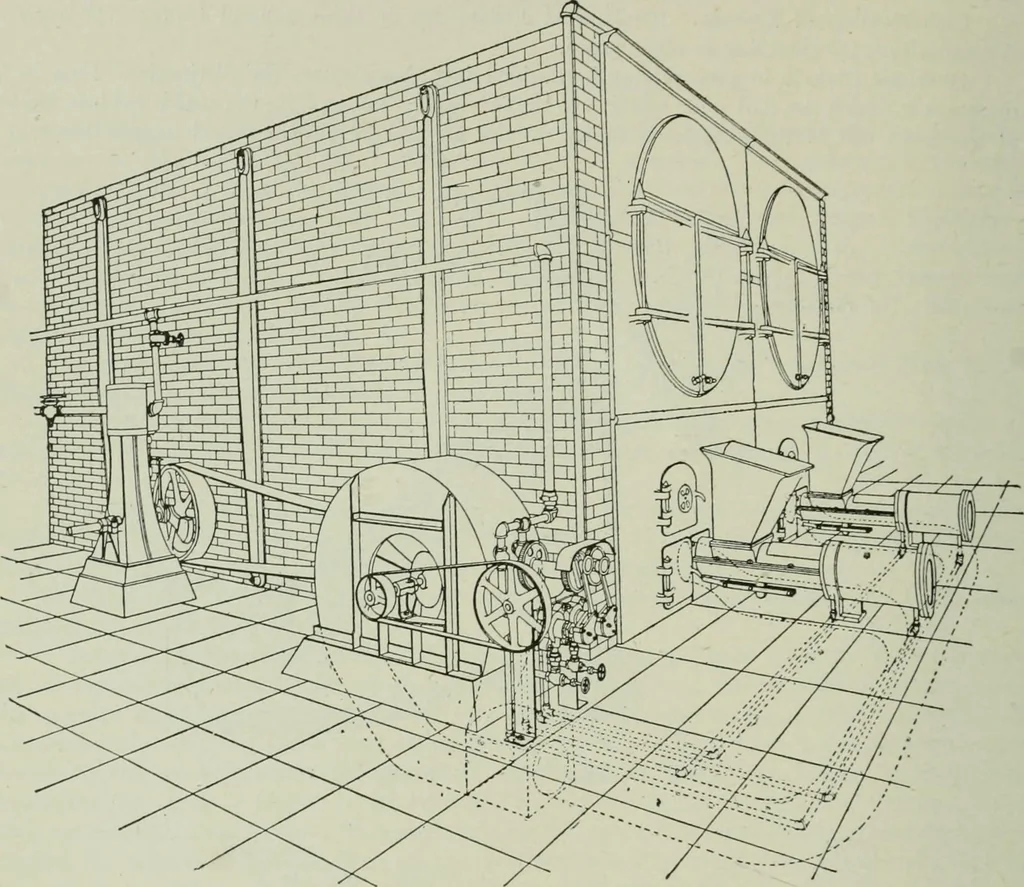

ingmixed with the hot gases in the furnace chamber. In the second class the fuel is fed from the 144 POWER PLANTS AND REFRIGERATION sides of the furnace for its full depth from front to rear on to grates inclined toward the centerof the furnace. It is moved by rocking bars and is gradually carried… … Fig. 3. Complete Installation of the Jones Stoker Showing Fan, Air Ducts and Steam Operating Valves. Underfeed Stokers are either horizontal or inchned. The fuel is fed from underneath, eithercontinuously by a screw or intermittently by plungers. The principle upon which these stokersbase their…
Building · Heating · Ventilation
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
