Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 195

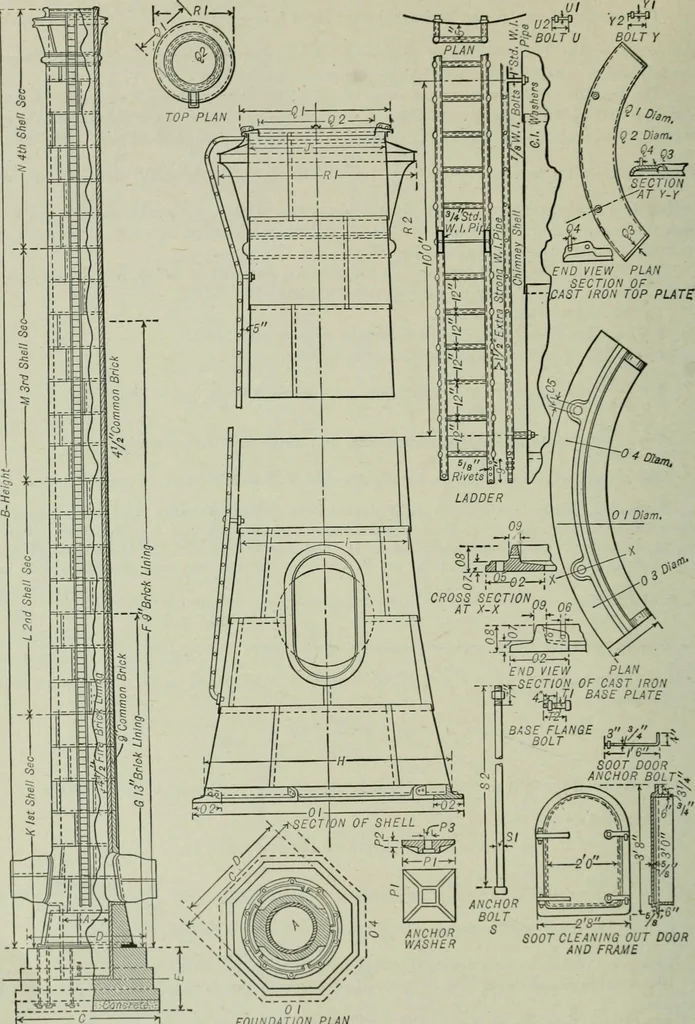

weight of shell. A = — = = 6443 lb. A 118 i- H s ^^ S 2950 per sq. in. stress due to wind moment. Total stress fi = fi + f2 = 6903 lb. per sq. in. Seams are ordinarily single-riveted except for bell at base of chimney. The rivet spacing should not be more than 16 times the thickness of plate, or… … SOOT CLEANING OUT DOORAND FRAME ELEVATION AND SFCTlON 0 I foundation planFig. 7. Self-Supporting Steel Stack. CHIMNEYS FOR POWER BOILERS 173
Building · Heating · Ventilation
