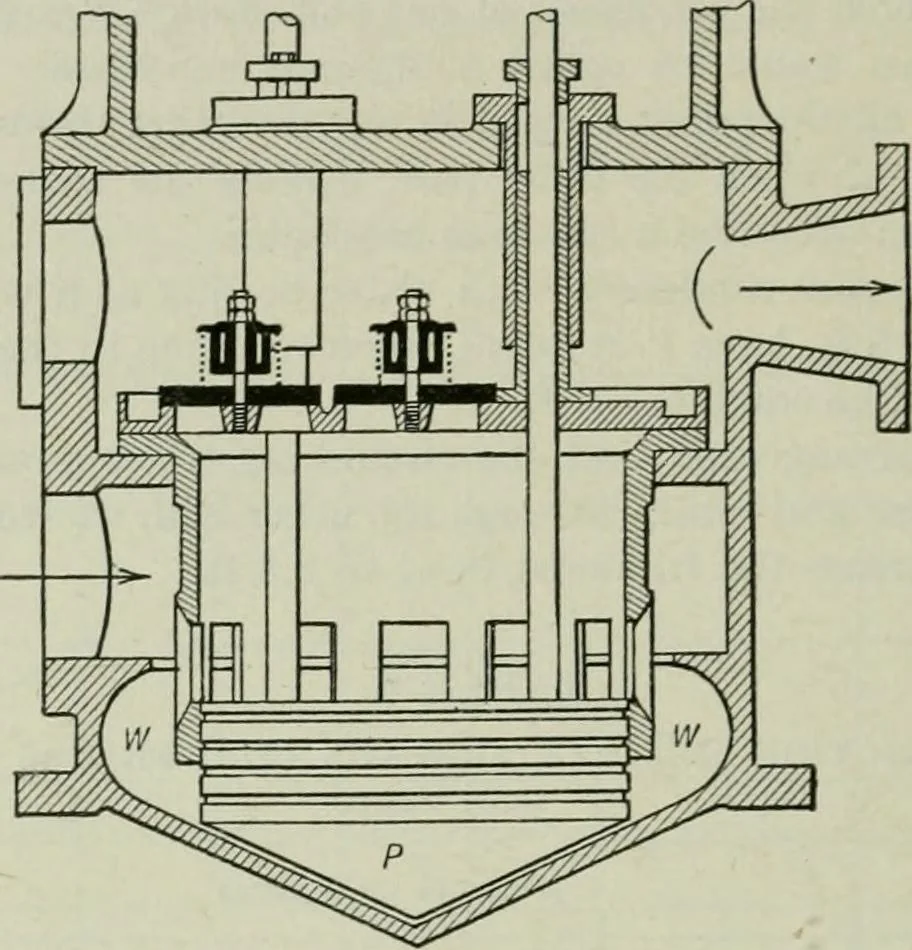

only the con-densate and air, and is therefore considerably smaller in capacity for an equal weight of steamcondensed than the air i)umi> of a jet condenser. Fig. 34 shows a section throujjh the cyhndcr of ihe AV/wto/v vortical single-acting wetair pump used in connection with surface… … Dischargt Fig. .31. Edw.\rds Air Pump. the down stroke of the cone-shaped piston is splashed through the ports in the cylinder wall upinto the top of the cylinder. This process partially compresses the air alreadj above the cylinderand also draws more air by inspiration from the condenser shell.…
