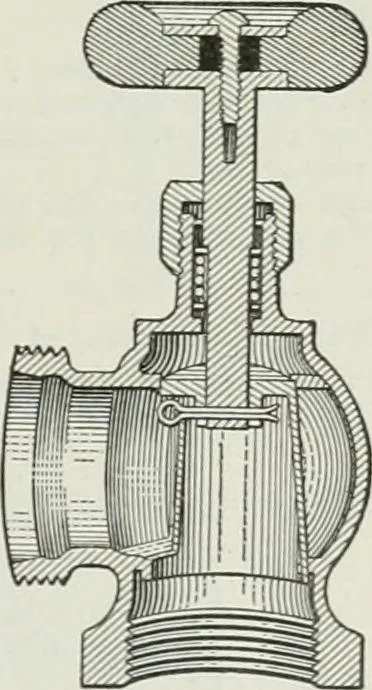

Fig. 30. Offset Corner ValveWTTH Male Union, Right Hand. Fig. 29. Steam Radiator Valve—Angle Pattern(Jenkins Bros.). Description of Parts. 1. Wheel 2. Lock Nut 3. Spindle 4. Bonnet 6. Disc 7. Waste Nut 8. Wheel Nut 9. Disc Nut 5. Disc Holder 10. Body 11. Union Nut 12. Union Nipple 13. Bottom Plate… … Fig. 31. Quick-Opening HotWater Radiator Valve. an opening in the valve bod}% is more generally used on water work than the butterflytj-pe of valve referred to above. The valve shown has a conical shell and globe-shapedbody, which helps materially to do away with the sticking of the shell, since…
