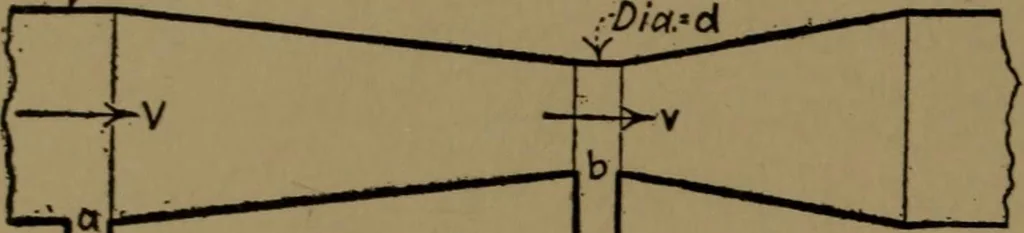

An illustration from Mechanical laboratory methods; the testing of instruments and machines in the mechanical engineering laboratory and in practice, 1922, leaf 125 — e the totalenergy, barring losses, remains constant. The drop in pressurebetween sections a and b thus becomes a measure of velocityand hence quantity. To deduce the equation for the Venturi meter it is onlynecessary to equate the expressions for energy at the two sec- 108 FLOW METERS 22 vr-D/ct. =… … <$-Pres$ure* H Pressure •h-~$
