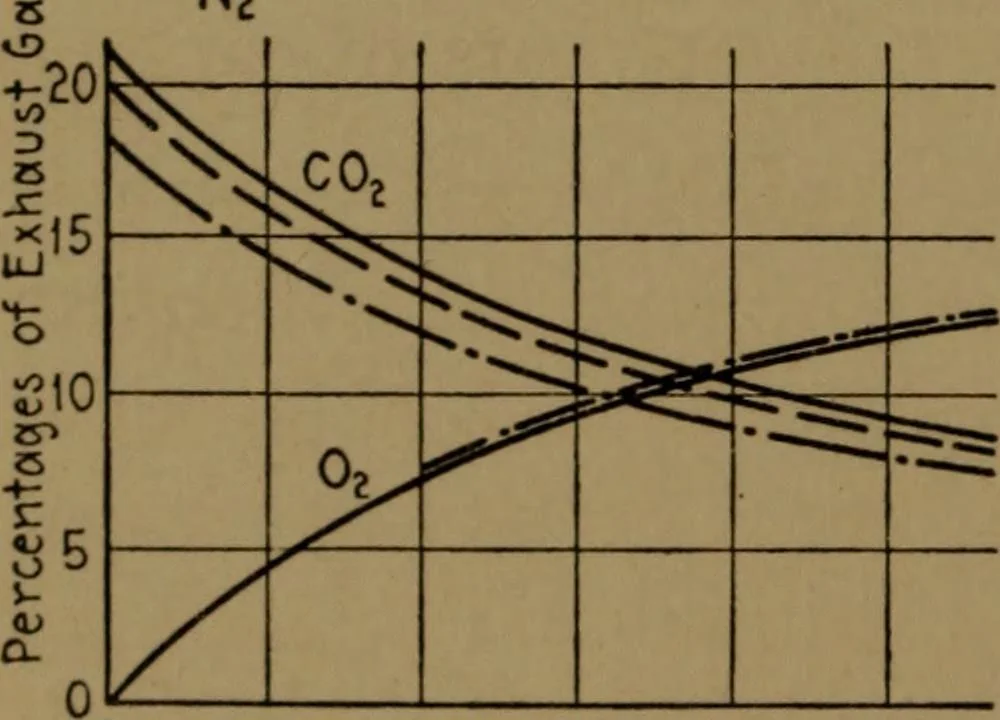

ir required = (c+.5h-g)+ 21. 188 PRODUCTS OF COMBUSTION 40 Products of Combustion. Referring to the tabulated mol-volumes above, and including the 8.4 volumes of N2 in the fuel(p. 294), the reaction would be: Fuel 80.2C +92.5H2+17.3502+8.4N2 +Air 109.15O2 +412.4N2 = Products 80.2CO2+92.5H2O… … nT coz 0^ / Producer Gas —Illuminating Gas co2 —— xT <rC 1.25 1.50 1.75 2.00 2.25 1.25 1.50 1.75 Fig. 78. Excess Coefficient Fig. 79 \ 1.25 1.50 1.75 2.00 Fig. 80. cent C02 will then be 80.2-f-501 = 16.0 per cent, and the per cent N2will be 420.8-7-501 = 84.0 per cent. If excess air is used,…
