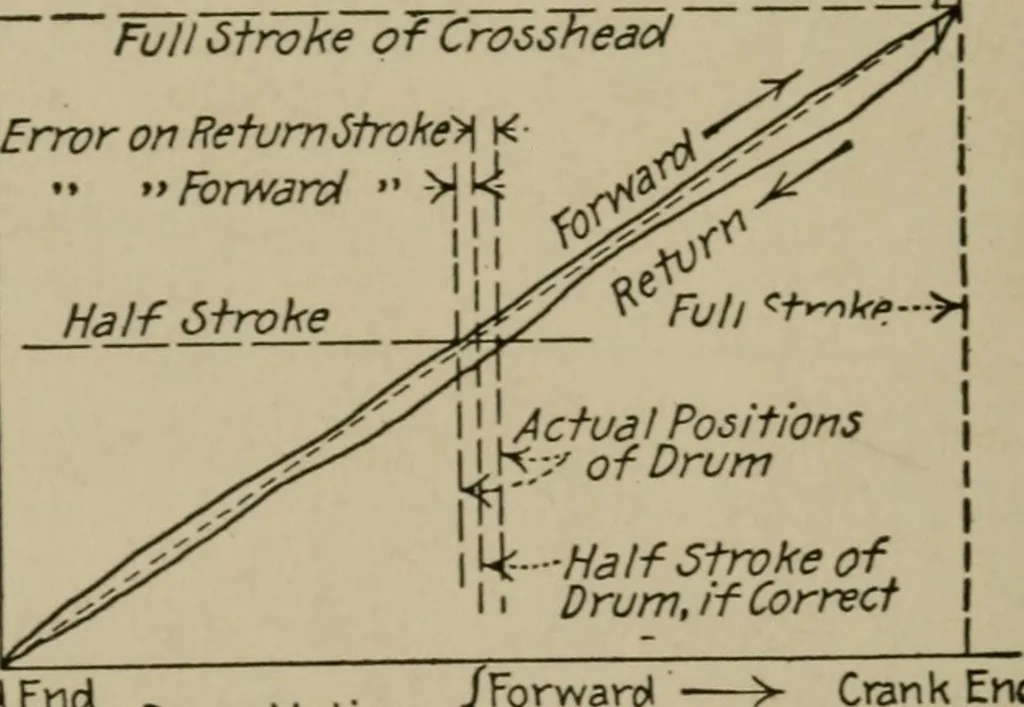

of any point on thecurve from the straight line shows the error in the drum motionat that point. When testing a drum motion for errors in an indicator diagrampreviously obtained, great care should be taken to reproduceall the operating conditions, relative to speed, spring tension,length of… … Drum Mo+i /Forward0 I Return Crank End Fig. 39.—Error Diagram from Drum Motion Tester. friction. Special care should be taken to reproduce the arrange-ment of guide pulleys. The effect of guide pulleys, especiallyif near the indicator, is similar to that of drum spindle frictionand imposes an…
