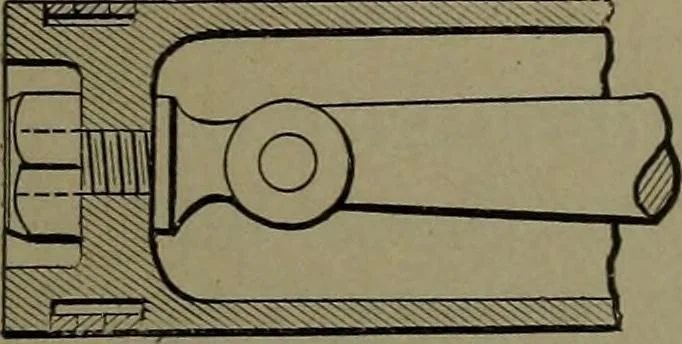

An illustration from Mechanical movements, powers and devices, 1911, leaf 136 — ^ 450. CRANK-ROD HEAD ADJUST- ] MENT for trunk pistons. A jointed brasstightened by a long-armed screw. … |_^ 451. TRUNK PISTON ROD connec^tion for a gas engine.
