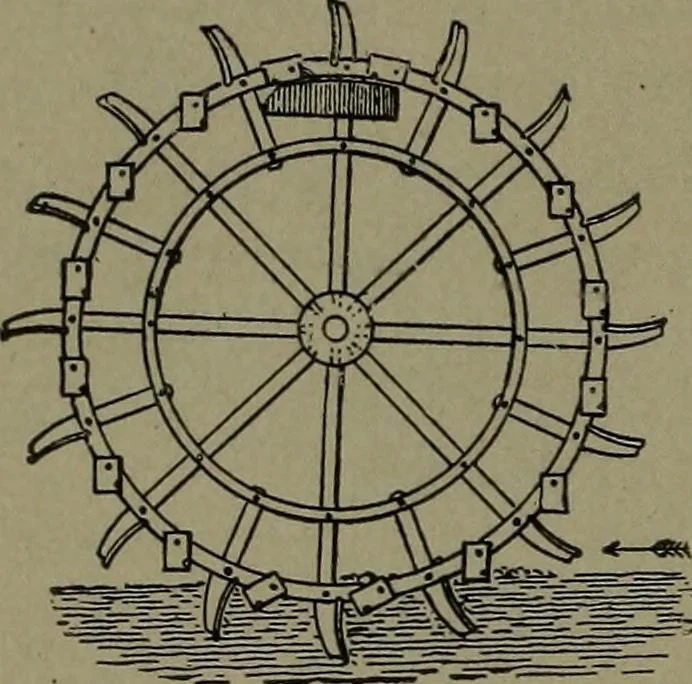

476. FIXED BUCKET WATER-RAISINGCURRENT WHEEL.—Long rectangularbuckets are attached across the rim of thewheel with side openings, indicated by thehatched spaces. At the top the water flowsover the side of the wheel into a trough. 134 HYDRAULIC POWER AND DEVICES. … 477. BUCKETED WATER-RAISINGCURRENT WHEEL.—The buckets arepivoted to the outside rim of the wheel, andtilted into the trough at the top by a tail-piece on the bucket striking the trough.
