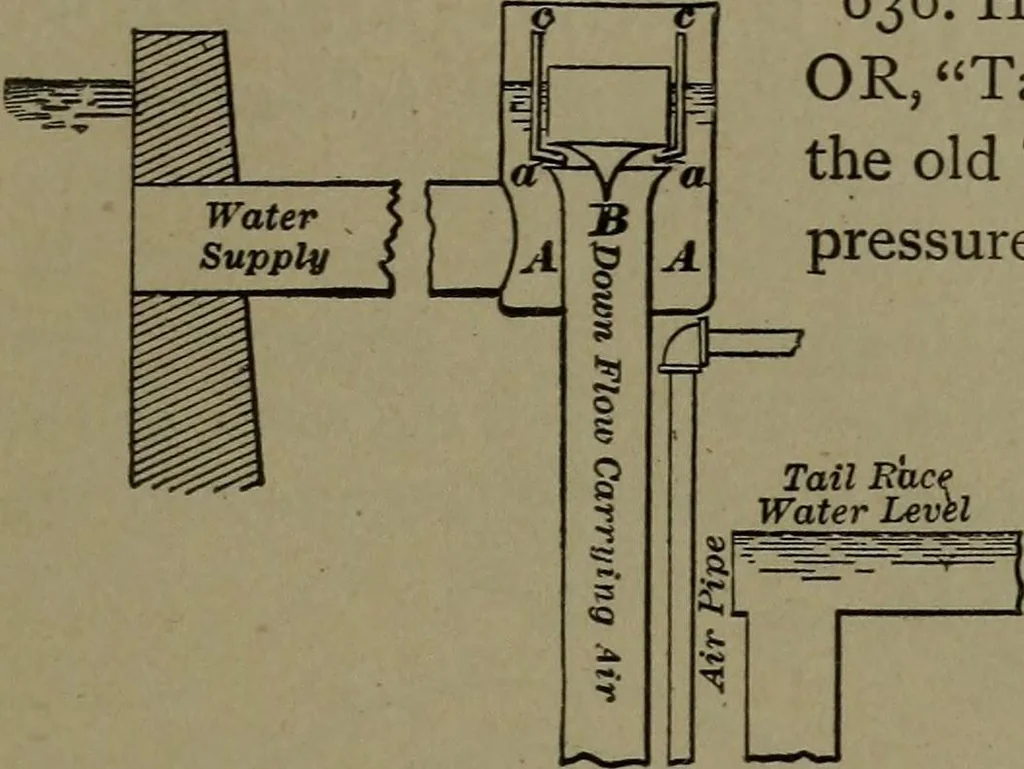

635. AIR COMPRES-SOR.— Elevation of duplextype, showing connectingrod and yoke frame. Cla5rton model. AIR POWER APPLIANCES. 171 … 1—. *■ s 1 3^^ —1— -— HI c /\, c 636. HYDRAULIC AIR COMPRESS-OR, Taylor system. The principles ofthe old Trompe blower extended for highpressures. A number of air tubes, r, <r,terminate at the conical entranceof the down-flow pipe, B, at a, a.A supply of water to the cham-ber A, A, and its flow…
