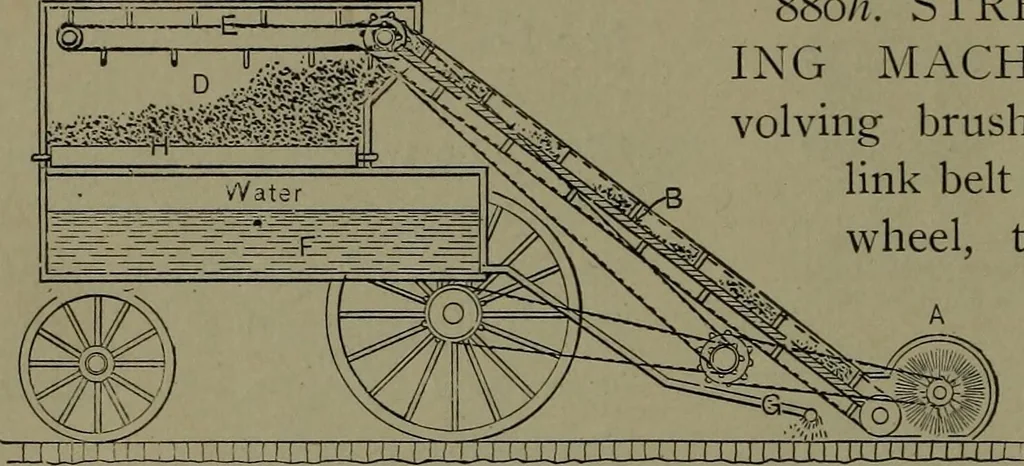

228 NAVIGATION AND ROADS. … 880/L STREET CLEAN-MACHINE.—A re-;■ brush A, driven bybelt from the wagon wheel, throws the dirt^ upon the ele- vator B, anddistributes itin the box D.E, the distributer; F, water tank to supply the sprinkler G.
