Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 278

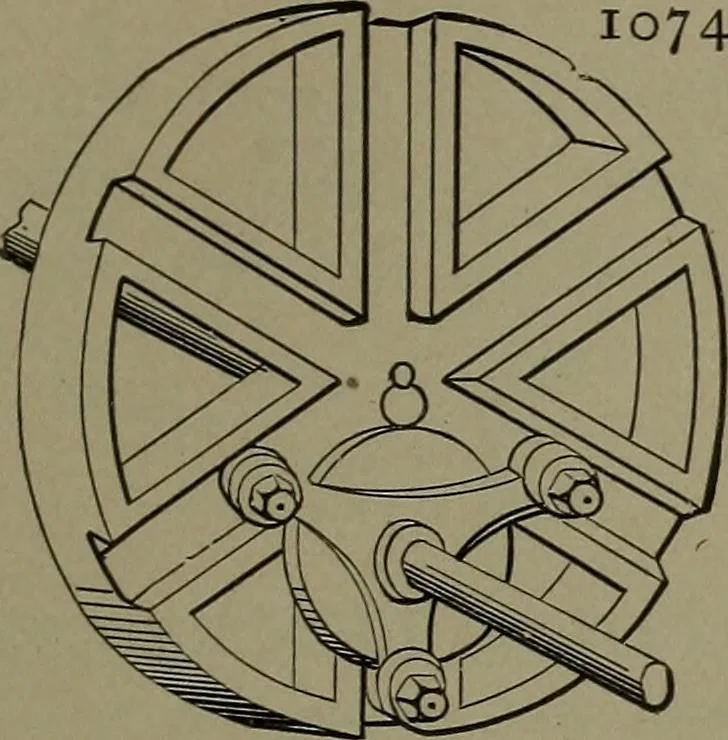

1073. RECTILINEAR MOTION by aright- and left-hand screw shaft driven by aworm gear. The nuts move on the right andleft screw. MOTION AND DEVICES CONTROLLING MOTION. 267 … 1074. SIX RADIAL GROOVED TRAMMEL and triangular shaft arms, driving or beingdriven by a shaft out of line. The frictionrollers give freedom of motion to either gear. XxZy^ZZ^^i^ /C \l Va- ;.. Pr ~1 1 iiO 1075. RECTILINEAR RECIPROCAT-ING MOTION of a bar, from continuous cir-cular motion of a bent…
Mechanical movements
