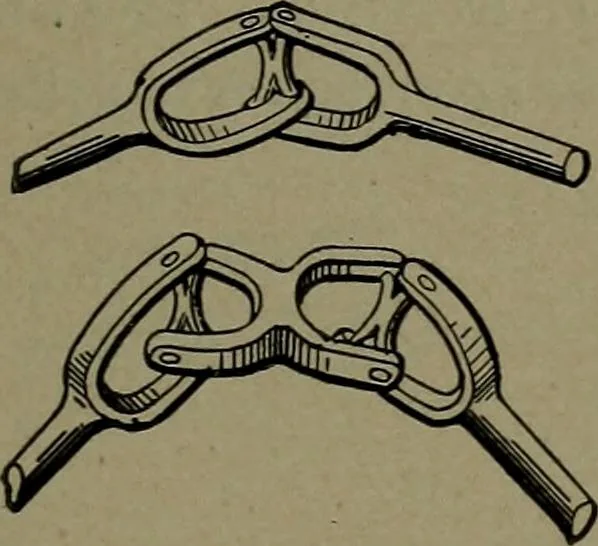

1131. ANGULAR SHAFT COUPLING for shafts out of line. The solid sleeve blockC is bored at the same angle of the shafts,and centres of bores at a dis-tance apart equal to the dif-- , ference in the plane of shaftalignment. … 1132. UNIVERSAL JOINT, with a singlecross link. Good for angles of 45° and under. 1133. DOUBLE LINK UNIVERSALJOINT, good for larger angles than above.The connecting link may be made short andguarded, with a sleeve to prevent kinking.
Mechanical movements
