Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 302

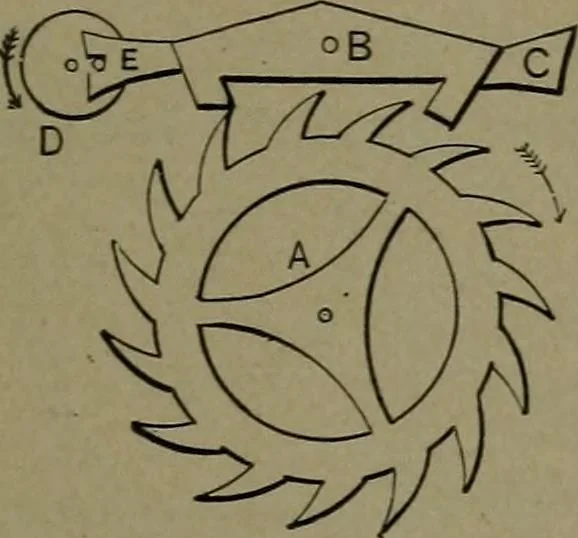

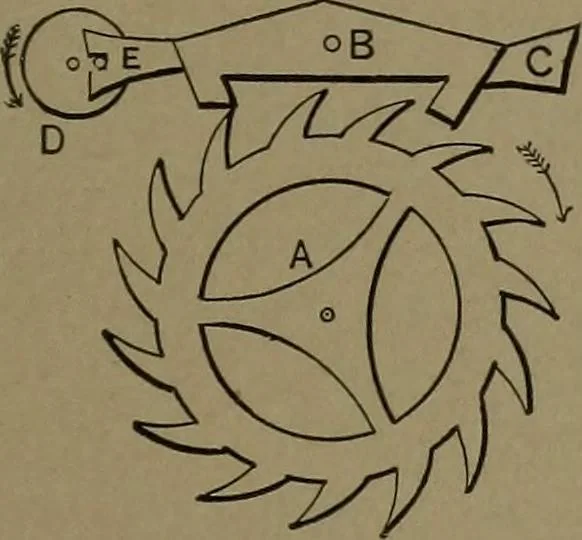

1183. ANCHOR AND LEVER ESCAPE-MENT for watches. Reeds patent. … 1184. LEVER ESCAPEMENT.—The anchor pallet B is attached to the lever C E,at the end E of which is a notch to receivethe pin in the balance-wheel disc D. The im-pulse is given to the balance wheel at themiddle of its oscillation by the escape of theteeth from the stop surface to the impulseplanes of…
Mechanical movements
