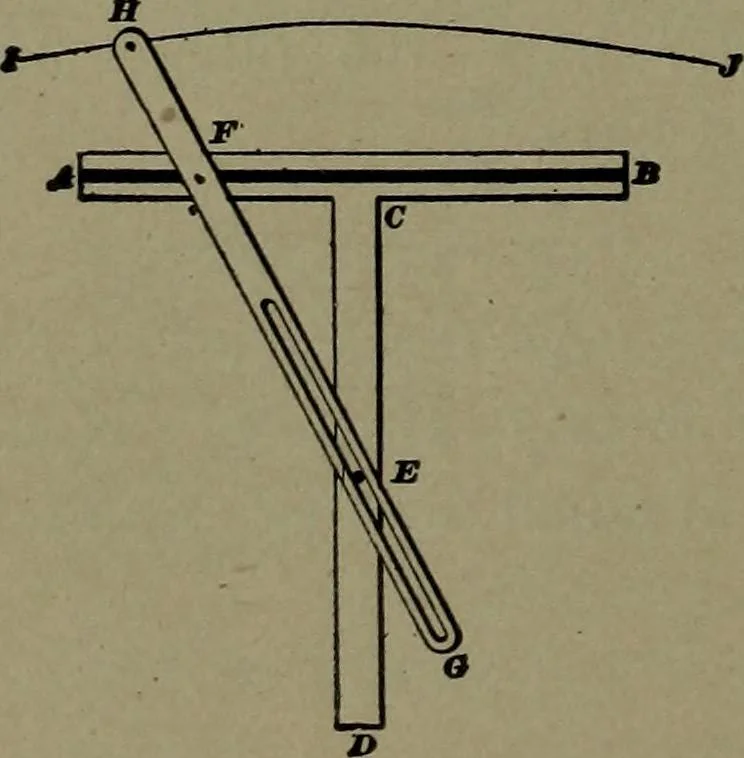

1520. CONCHOID DELINEATOR,of Nicomedes. A slotted head T-piece,A, B; a slotted arm, G H, with traversepin at F. Distance between F, H, andpin at E may be variable to suit therequired condition of curve. Pencil atH delineates a conchoidal curve, usedin architectural drawings for the linesof columns.…
