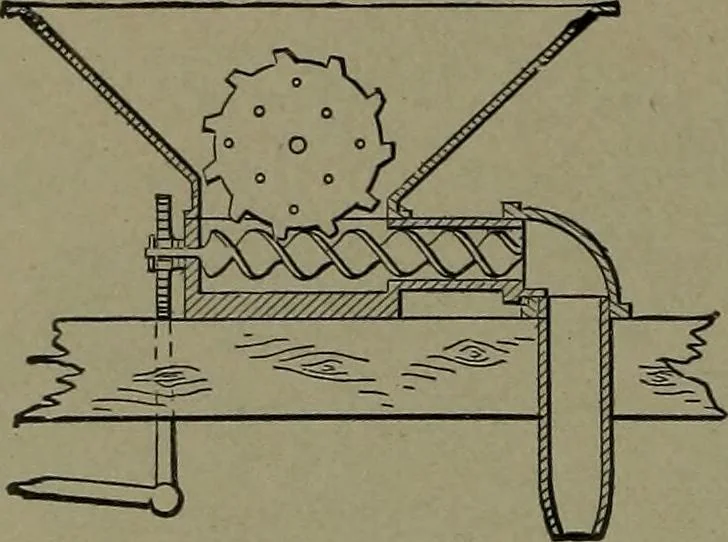

d geared up to the crank. Thesaw is fed by a screw moving the gear framedown on the rail. 1589. PROUTY-NOBLE AUTO-MATIC, OR SELF-WINDINGBRAKE.—The central chain spool 3runs loose on the car axle and betweentwo friction flanges, one of which isfast to the axle and the other slideson a feather. The… … 1590. STREET-CAR SAND BOX. — The operation of the lever, pawl, andrachet wheel turns the twisted carrier andat the same time revolves the toothed feedwheel.
