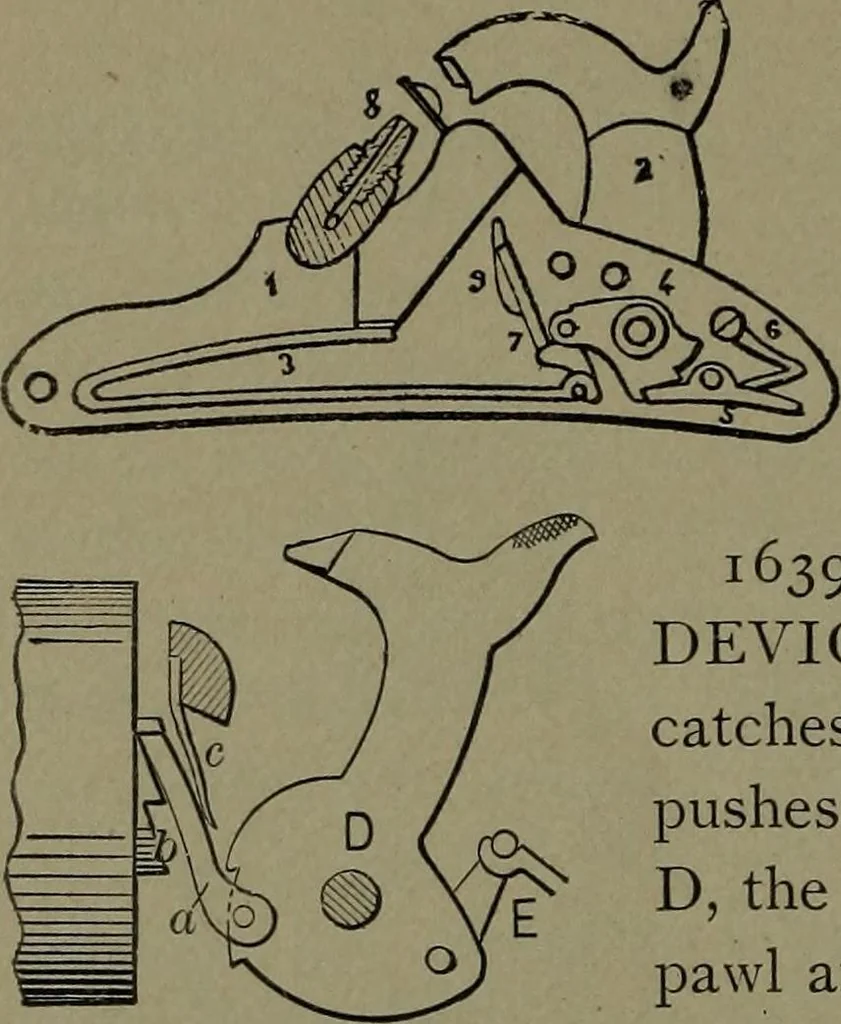

1636. ACETYLENE BURNER.—A doubleflame burner at right angles. The small holesin the sides of the tips allow air to enter andmingle with the acetylene gas before it is.ignited, thus making a mixture of gas and airthat makes a clear flame and a safe burner. TLsn B 1637. BAYONET JOINT.—The pin fixed… … 1638. GUN LOCK.—I, lock plate;2, hammer; 3, mainspring; 4, tum-bler; 5, sear or trigger lever; 6, seatspring. 1639. COLT CYLINDER REVOLVINGDEVICE for firearms. a, the pawl thatcatches the circular ratchet b\ c, 2i spring thatpushes the pavv^l into the teeth of the ratchet;D, the hammer butt to…
