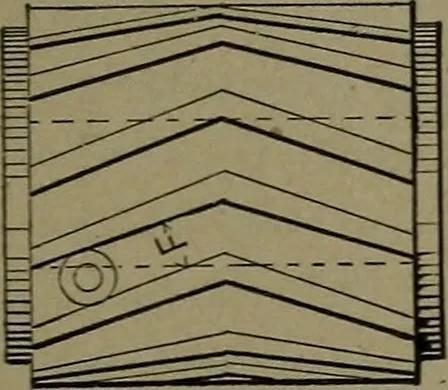

122. V-TOOTHED GEARING.—The obli-quity of the teeth from the centre of the faceneutralizes the longitudinal thrust of plain obliqueteeth, as shown in the next pair. 123. OBLIQUE TOOTH GEAR.—A smooth running gear, with slight longitudinal thrust dueto the inclined tooth surfaces. … 124. V-TOOTHED GEAR.—The teeth of whichare usually inclined from the centre lines of the faceequal to the amount of the pitch at the outer ends.
