Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 70

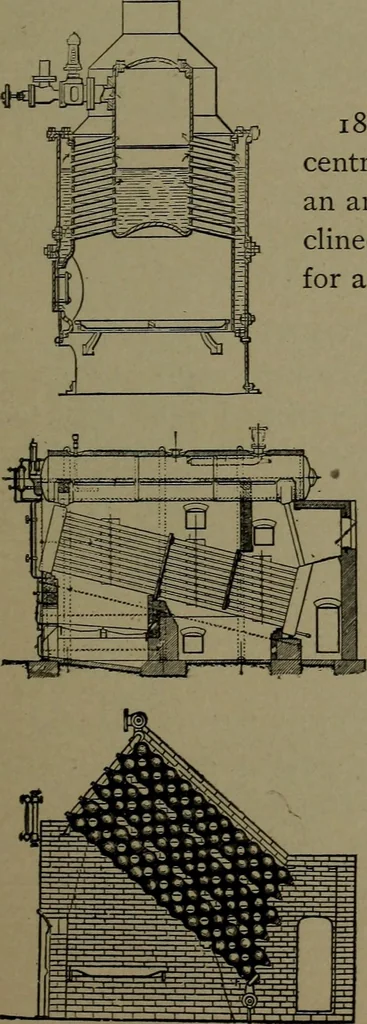

161. GALLOWAYBOILER.—An in-^ ternally fired ovalflue, with small con-ical tubes set diago-nally acrossthe flue. 182. INTERNAL FIREDCYLINDRICAL TUBULARBOILER.—Lower shell slight-ly inclined to facilitate circula-tion. Fire surface of tubes,fire-box, and all of shell ex-^S posed to heat, divided by…
Mechanical movements
