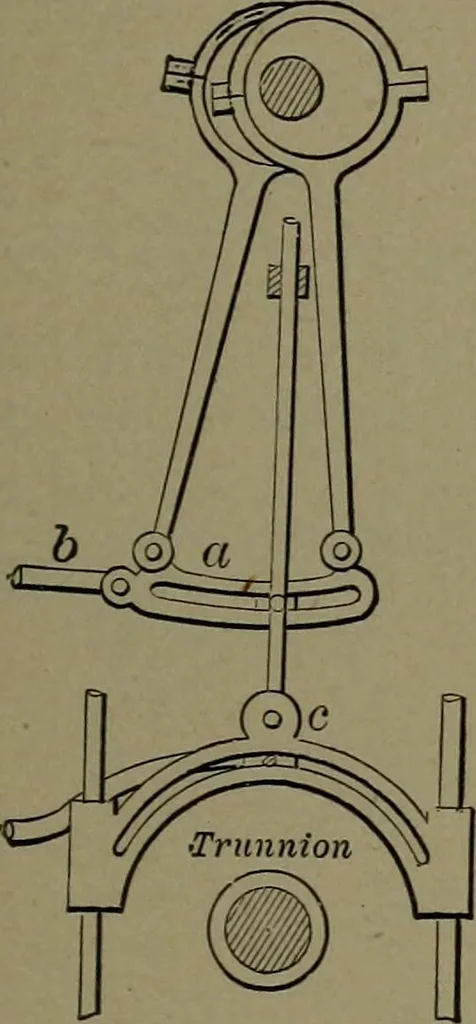

dng thevalve rod is stationary in the slot. … 256. VALVE GEAR of an oscillating marineengine. The slotted link «, receives a rockingmotion from the eccentrics and rods, and is thrownfrom its centre either way for forward or backmotion of the engine by the lever connecting rodb. A block and pin attached to the valve rodfreely traverse the link…
