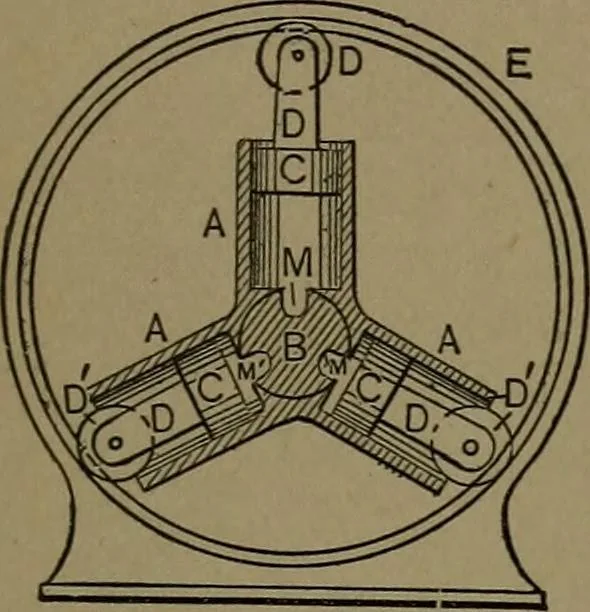

a disc valve with inlet and exhaustthrough the hollow shaft.346. Section. STEAM POWER. 95 347. RUTHS ROTARY ENGINE.—A revolving cylinder engine. Three cylinders,A, A, A, radiate from a shaft set eccentric toan outer circle or ring on which the J^pistonconnected sheaves revolve. The pistons…
