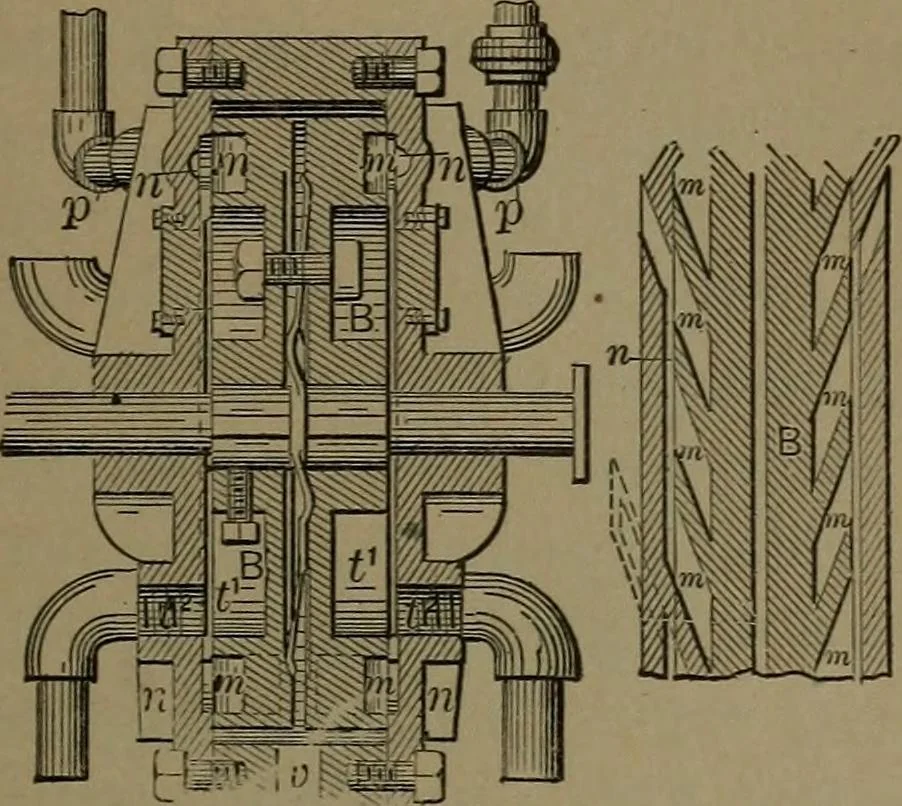

363. DAKE SQUARE PISTONENGINE. — Two rectangular pistons,one within the other, working at rightangles in the outer piston. The innerpiston is connected to the crank pin,and moves vertically. The outer pistonmoves horizontally in the case. Theprinciple is similar to the Root SquareEngine, No. 362.… … 365. Section showing steam pockets. 364. ■- .VILKINSONS STEAMTURBINE. —Two rim-pocketedf discs running against the disc surfacesof a shell with oblique steam ports.The discs are feathered on the shaft,and held against the faces of theshell by springs. A groove aroundthe shell opposite the pockets…
