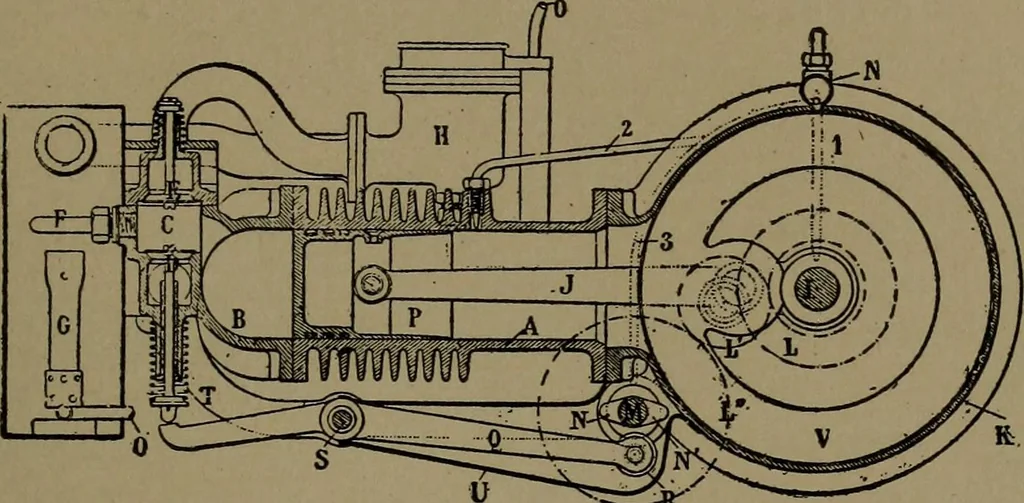

An illustration from Mechanical movements, powers and devices, 1907, leaf 130 — on model. Afour-cycle motor withhalf-reducing gear;push-rod lever and twopush rods for governingcharge and exhaust. MOTIVE POWER. 119 427. GASOLINE CARRIAGE MOTOR. — Four cycle or com-pression type. Ribs on cylinder for air cooling. H is the carburetter with wire-gauge atomiz-er; O, gaso-line… … ^rirr-^r
