Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 135

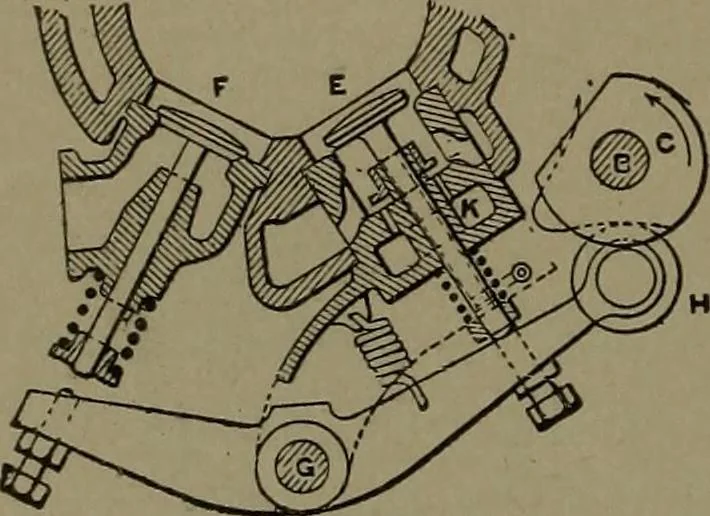

444. INLET VALVE for gas engine.A valve disc slightly held in contact withthe seat by the spring. Air holes should bedrilled close together around the valve seat,so that combined air area shall be largerthan the area of the gas inlet. … 445. GAS ENGINE VALVE GEAR.— E, Inlet valve; F, exhaust valve. Valvesare operated by a bent lever, with slidingroller H and double cam C, which by agroove rides the roller alternately on to thecams. drawn by the 446. GASOLINE VAPORIZER. — The inlet nozzle, V, is ribbed onthe outside and is enclosed…
Mechanical movements
