Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 160

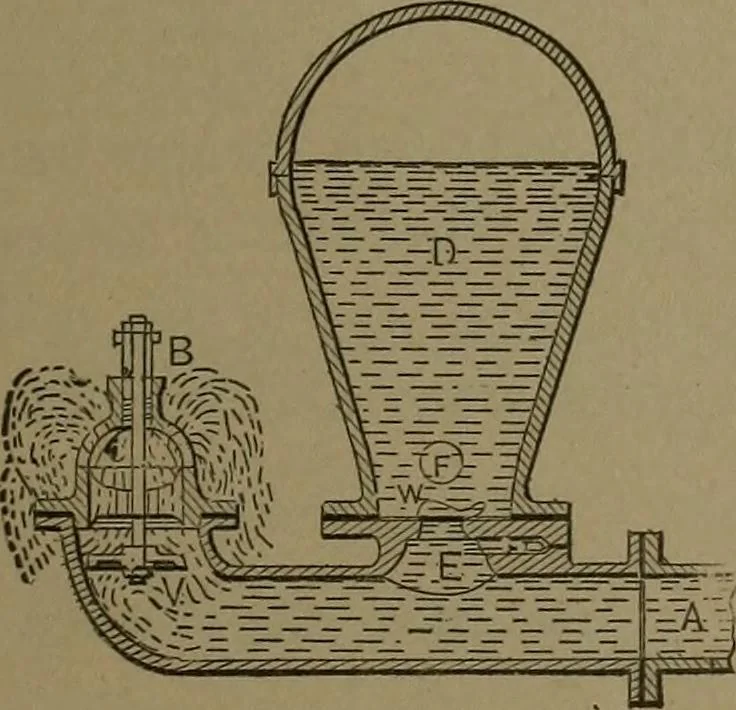

HYDRAULIC RAM, the « Montgol-fier idea for a fountain supplied by a waterram. 552. HYDRAULIC RAM.—A, Driving pipe; V, impact valve; C, valve-bonnet cage and spindle; W, force valve ; F, out- -R-^^^g let to force pipe; D, air chamber; E, snift- ■l-r--. ¥^^~^^ ii^g hole, sometimes furnished with a…
Mechanical movements
