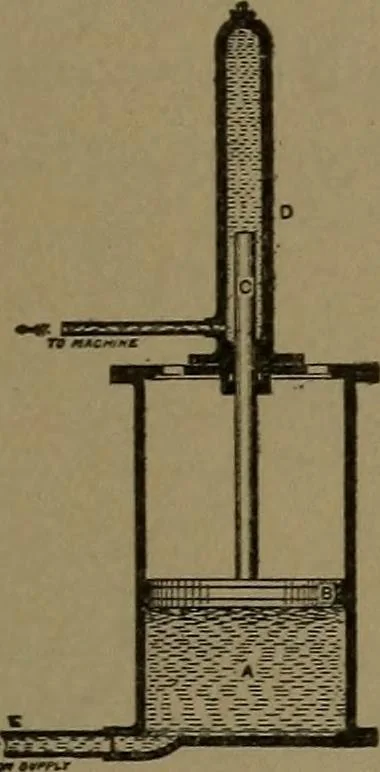

565. HYDROSTATIC PRESS.—There aremany modifications of this principle for pressesand elevator lifts. The gross pressure of theram is as the areas of the ram and pump pistonsmultiplied by the pounds pressure on the pumppiston. HYDRAULIC POWER AND DEVICES. 153 … 566. HYDRAULIC INTENSIFIER. —High pressure obtained from low pressure by differentia]pistons. A, Low-pressure cylinder; D, high-pressurecylinder and plunger.
Mechanical movements
