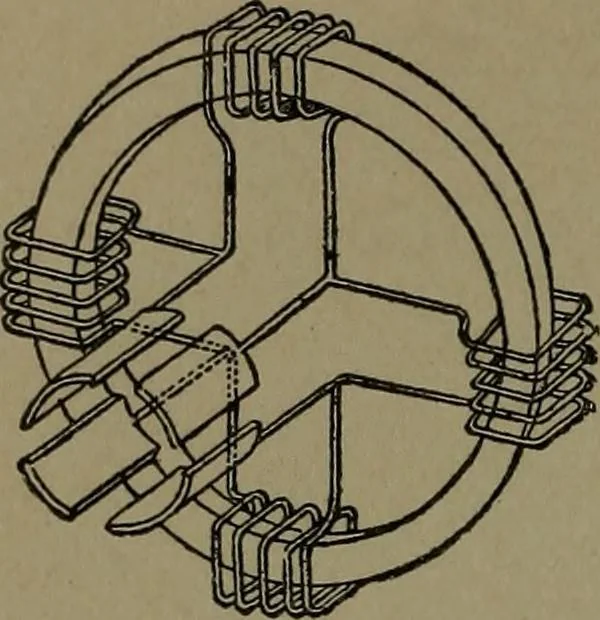

706. ELECTRIC GENERATOR CONSTRUCTION. —Shunt winding, in which the field winding is in parallelwith the armature winding and connected with the circuitat the brush holders. A, Armature; C, commutator; /;and b\ brushes; a^ c, field connections ; S, field winding. 190 ELECTRIC POWER AND CONSTRUCTION. … 707. FOUR-POLE RING ARMATURE,showing intermediate connections with thecommutator bars from a continuous windingor closed coil.
