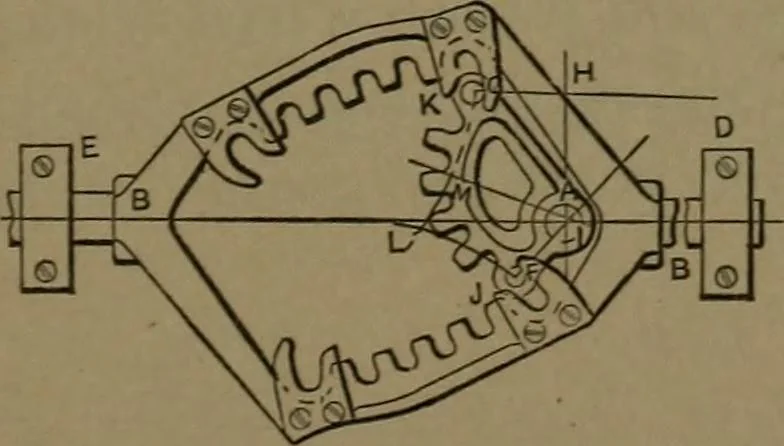

a pinion, andD, the driven wheel. The three pinions are connectedwith pivoted arms; then the swinging of the spurwheel B around its eccentric axis will give a variablemotion to the wheel D. 951. VARIABLE RECIPROCATINGMOTION from a rotating spiral spursector meshed in racks inclined to theline of… … 16 242 GEARING. 952. IRREGULAR CIRCULAR MOTIONfrom an elliptically eccentric gear train. C is theelliptic driving wheel turning with the shaft at D.B is the intermediate gear with a pinion follower tothe eccentric gear C. A and B are attached by anarm pivoted on their respective shafts, so that…
