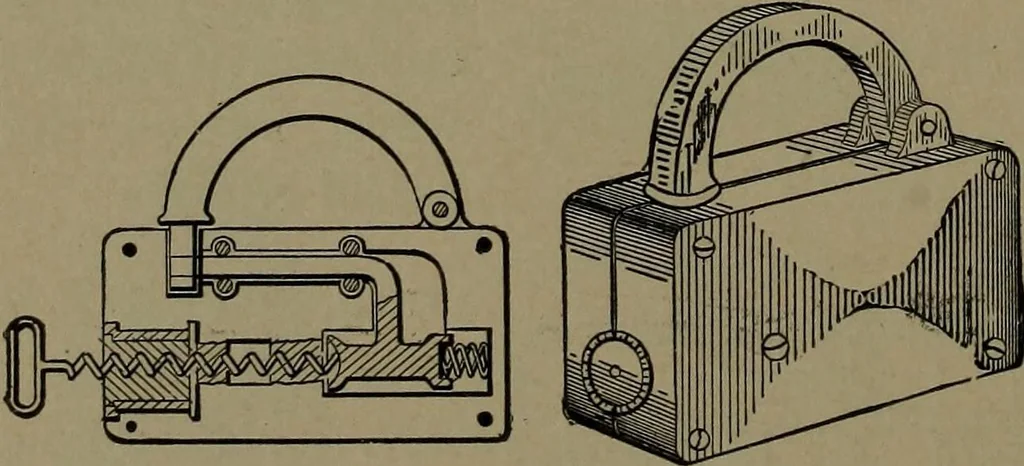

An illustration from Mechanical movements, powers and devices, 1907, leaf 293 — 1145;. POSITIVESHUTTLE MOTIONfor a narrow fabricloom. The shuttle hasa narrow recessed rack^ geared through a set ofpinions to the recipro-cating rack. 1145^. A CURIOUS PADLOCK.—The key is like a corkscrew. The circular recess in front contains a rotating cylinder with a spiral keywayand graduated… … Section XIII, HOROLOGICAL. Clock and Watch Movements and Devices.
