Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 297

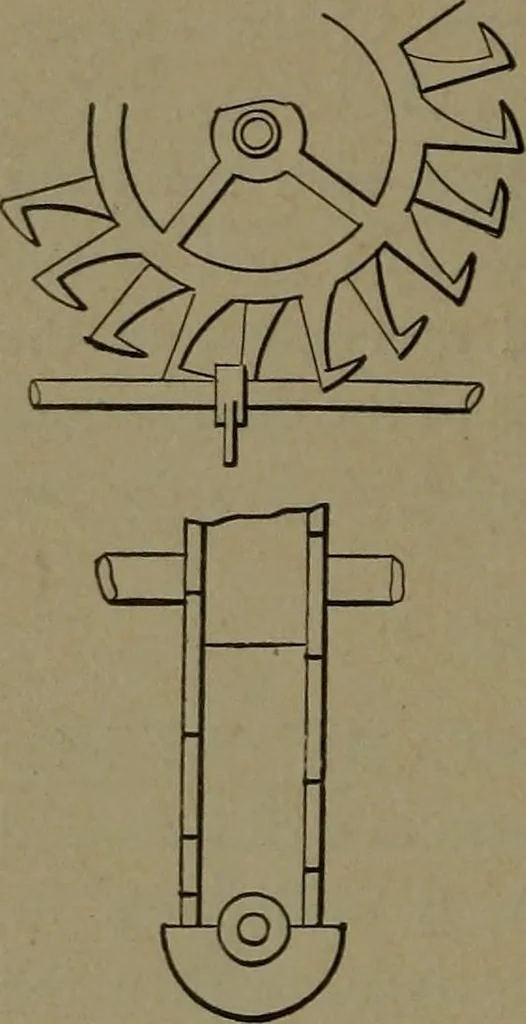

1158. LANTERN-WHEEL ESCAPEMENT. —The pallet arm A is attached directly to the pen-dulum, swinging upon the axis A, and receives itsimpulse from the inclined faces of the pallets C, B,Used for large clocks. 1159. PIN-WHEEL ESCAPEMENT, with adead-beat stop motion. For short-beat pendulumclocks. 286… … 1160-1161. HOOK-TOOTH ESCAPEMENT.—The teeth are arranged alternately on twoescapement wheels. The oscillation of the semi-circular pallet alternately releases and receives animpulse from the hook teeth of the escapementwheel. The curved outer face of the teeth actsupon the edge of the straight edge…
Mechanical movements
