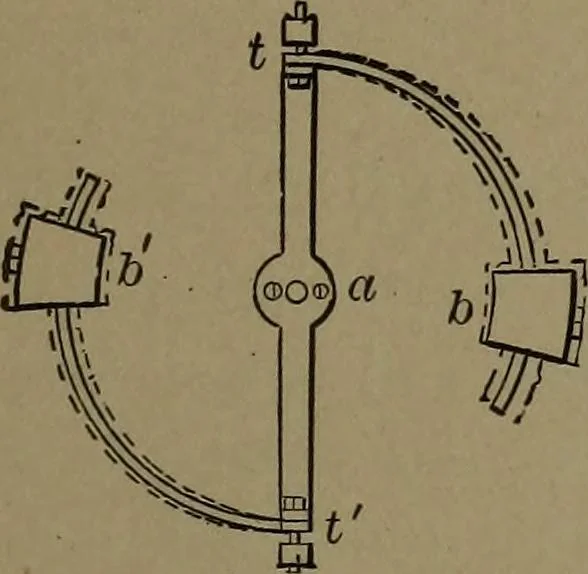

An illustration from Mechanical movements, powers and devices, 1907, leaf 300 — 1173. CLOCK TRAIN, showing the methodof sustaining the movement of the train dur-ing the time of winding. The bent springkeeps a tension on the large gear by the lock-ing of the large ratchet to which the bent springis attached, when the winding of the barrel canbe made without a back-set in the… … the weights. 1174. COMPENSATION WATCH BAL-ANCE.—At the ends of the balance bar are at-tached compound sector bars, the inner sectionof which is of steel, and the outer section of brass.The weights If, b regulate the momentum of thebalance wheel, while the change in length of thearms is compensated…
