Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 346

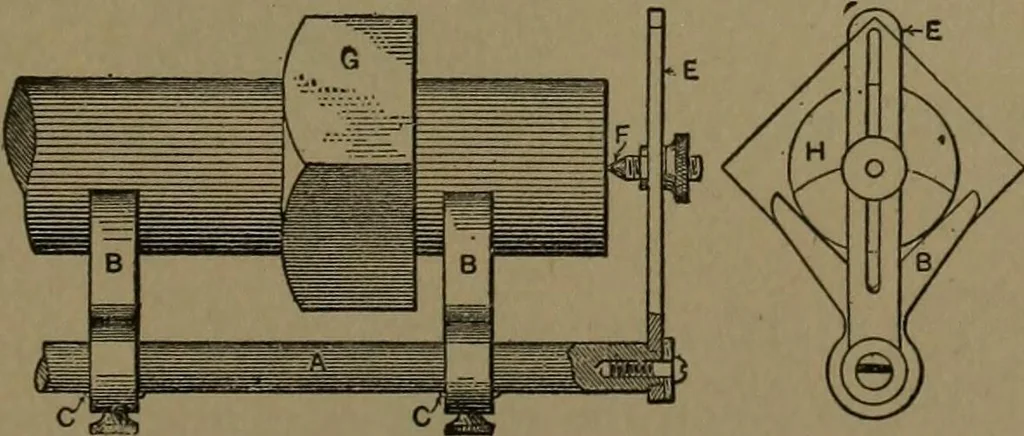

1386. SIGHT-FEED LUBRICATOR.—The amount of feed is seen by the frequency of drops atthe sight hole. Adjusted by a needle-point valve withmilled head and screw. -^ rSi -^=^ T387. SCREW MOVEMENT, for the tailstock of a lathe. The spindle moves m a keyslot to prevent turning. The screw has acollar and… … verses around the shaft to be centered.1389. End view. 1388. CENTERINGTOOL. Used for scratch-ing the centre on roundshafting, or rods. Theslotted arm E swings onthe spindle A, as it tra- 336 MILL AND FACTORY APPLIANCES.
Mechanical movements
