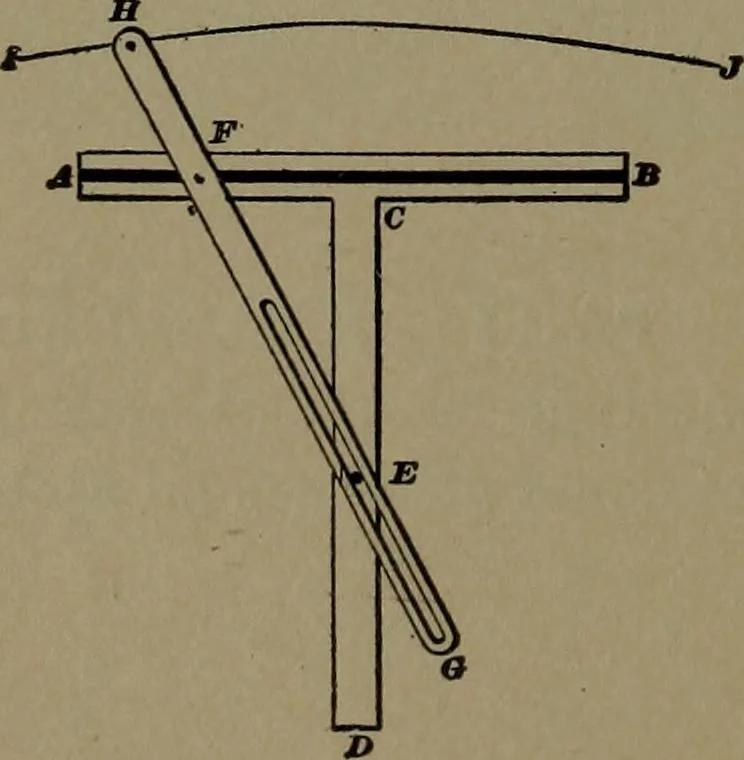

fixed centre describes a helical curve. c t^^^^^^^^l 1519. GREAT CURVE DELINEA- B |_ TOR. — Thin-edged ^^^ =q, discs of different di- rameters are attachedto a bar or tube at a distance apart, so that their relative diam-ters and distance will correspond to the required radius, which maybe computed… … 1520. CONCHOID DELINEATOR,of Nicomedes. A slotted head T-piece,A, B; a slotted arm, G H, with traversepin at F. Distance between F, H, andpin at E may be variable to suit therequired condition of curve. Pencil atH delineates a conchoidal curve, usedin architectural drawings for the linesof columns.…
