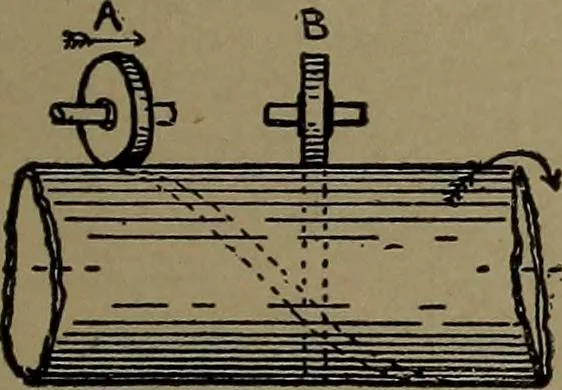

d fast pulley (b), fast pulley (c) on hollow shaftcarrying large driving gear at the right. 100. VARIABLEGEARING. SPEED OR CONE -w^^ a, tight pulley on outside hollow shaft. b, tight pulley on inside hollow shaft.<:, tight pulley on inner or solid shaft.d, loose pulley on solid shaft. a b c\… … 102. FRICTIONAL RECTILINEARMOTION, from the angular position of asheave or pulley rolling on a revolving barrelor long cylinder. A, forward motion; B, stop.The principle of the Judson railway pro-pulsion. Efficiency was increased by the use of a small truck withseveral roller pulleys. 103. VARIABLE…
