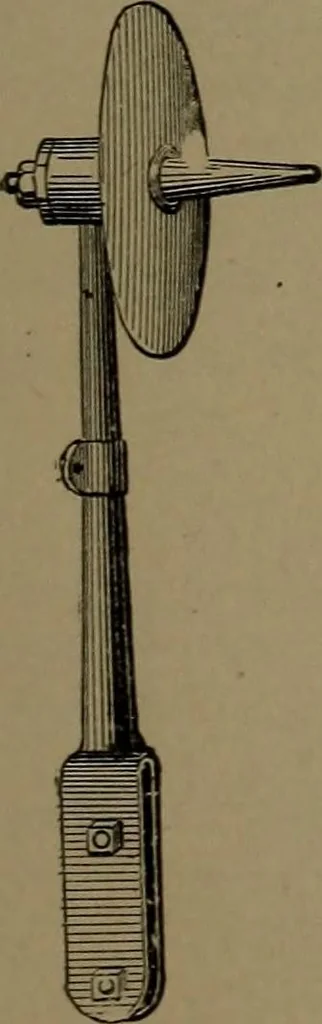

171&. DETAILS OF THE ST.JOHNS STEAM METER.—Thelifting of the conical valve by differ-ential pressure allows the requiredquantity of steam to pass through theannular area, which is the measure un-der the initial pressure. The valvelift is recorded on a strip of papermoved by a clock; the mean of… … 171C. BELT SHIPPER.—A taper pinwith a flange at the large end and attachedto a pole. This handy device enables thethrowing of a belt off or on with safety. 56 MEASUREMENT OE POWER. J
