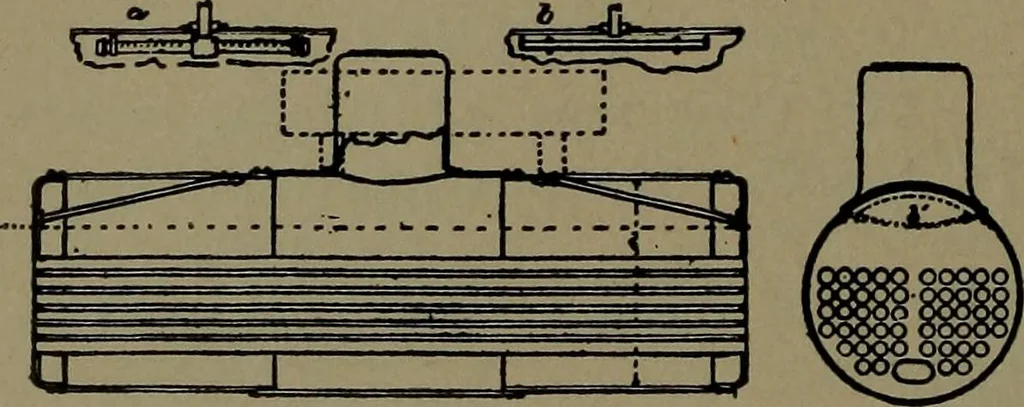

^^S … 176. INTERNALLYFIRED FLUE BOILER. —The flue and half theshell surface, if exposedto heat, divided by 14,equals horse-power. 177. HORIZONTALTUBULAR BOILER,with steam and dry steampipe, a, Dry steam pipe.One-half the shell and allthe tube surface, dividedby 14, equals the boilerhorse-power.Mechanical movements
