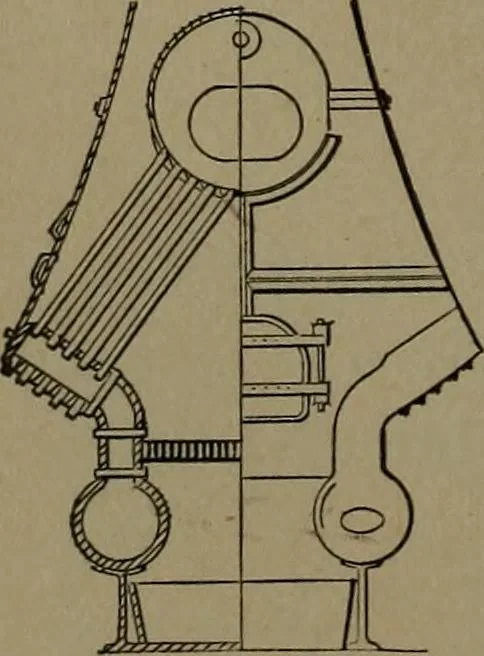

188. THORNYCROFT BOILER.—A large steel drum above and a waterdrum below, connected with a large num-ber of bent tubes. The water return isthrough a large tube at the rear end ofthe boiler. … 189. SEE WATER TUBE BOILER.— A series of short straight tubes connecting a hori-zontal steam drum with a rectangular water baseon each side of the furnace. Return tube at backof boiler. STEAM POWER. 61
Mechanical movements
