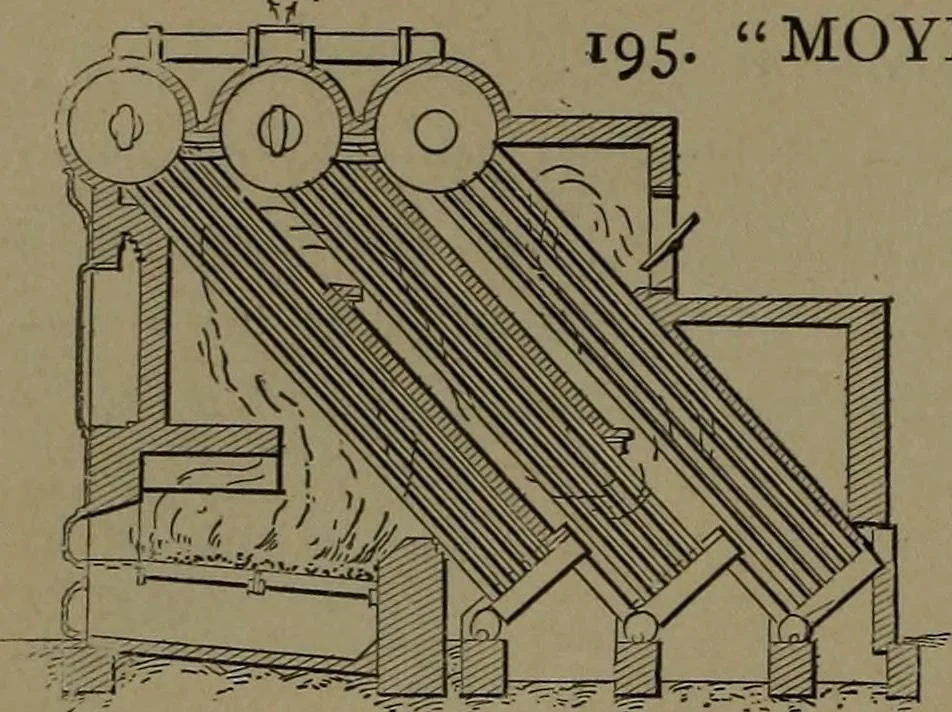

steam drum, with bentY v5^\ tubes expanded in it, and inclined to facili-/ tate circulation. 194. Section showing bent tubes. 62 STEAM POWER. 195. MOYES WATER tUBE BOILER.— The inclined tubes are in threegroups, set in three steam drumsabove and three water-heads be-low. Partitions divide the…
