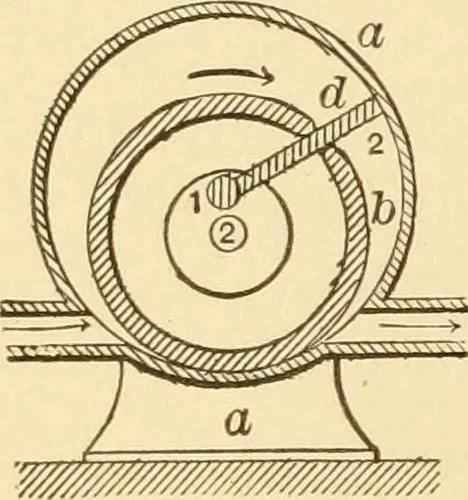

of oilfrom the capillary feed oil cup. 323. CENTRIFUGAL CRANK-PIN OILERmade adjustable by the sliding support clampedat S, so that the revolving feed pipe K shall bealigned with the axis of the shaft. ^. Jj 1 h 324. CENTRIFUGAL LUBRLGATING DEVICE for the crankpin of a high-speed engine. Anannular… … 325. COCHRANE ROTARY ENGINE.— A wing piston rotating around the central axis of anouter shell or cylinder. A hollow cylinder of small-er diameter is pivoted eccentric to the wing axis tokeep one side in contact with the shell. The steampressure revolves the wing and shaft with a forcedue to the…
