Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 103

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox, 1914, leaf 103

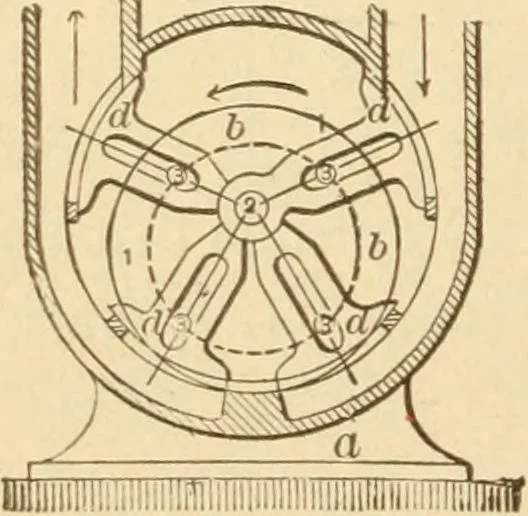

335. ROTARY ENGINE, with concentric shaftand wing barrel. The two wing slides pass throughcylindrical rockers to give the slides a slight oscillat-ing motion; slides are kept extended by pins tra-versing a circular slot concentric with the shell. … 336. SMITH ROTARY ENGINE.—Four arms with cylindrical sectors are rotatedaround an axis central to a perforated cylindricalshell. The driven shaft and head discs are ec-centric to the shell. The pressure of steam be-tween the wings tends to push them apart, bywhich the differential leverage on the…
