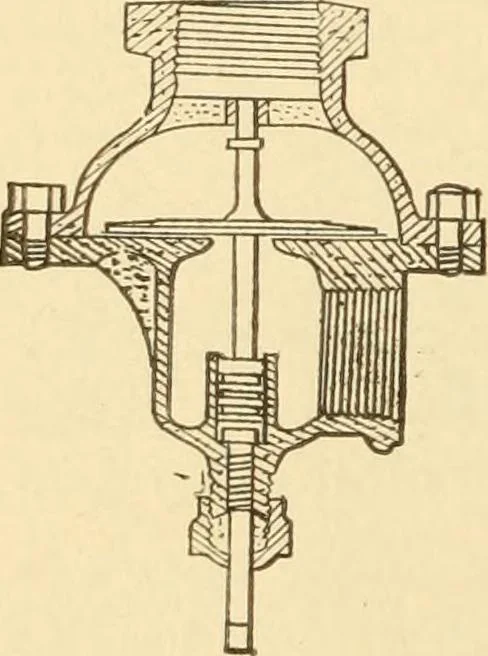

399. BALANCED REDUCING VALVE.— The spindle of the balanced throttle discsis attached to a large diaphragm by levers, andcounterbalanced by an outside lever withmovable weight for adjustment of the reducedpressure.
