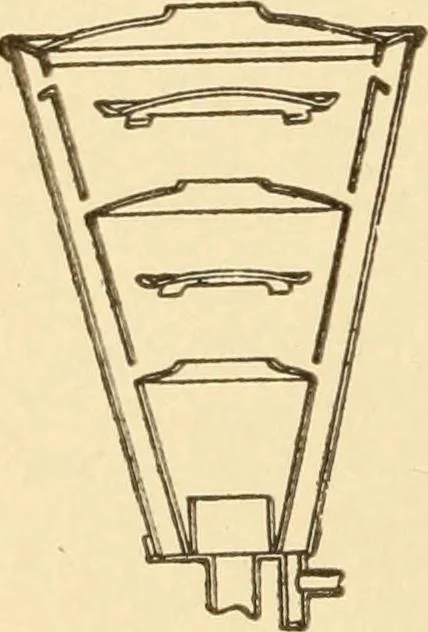

419. GLOBE VALVE. a, the body.d, the bonnet.g, the spindle. b, the winged disc. c, the spindle nut <f, gland./, gland nut.h, wheel. … 420. EXHAUST STEAM HEAD. —The ex-haust steam is deflected by perforated discs and capplates, which separate the water to drip betweenthe inner and outer shell.
