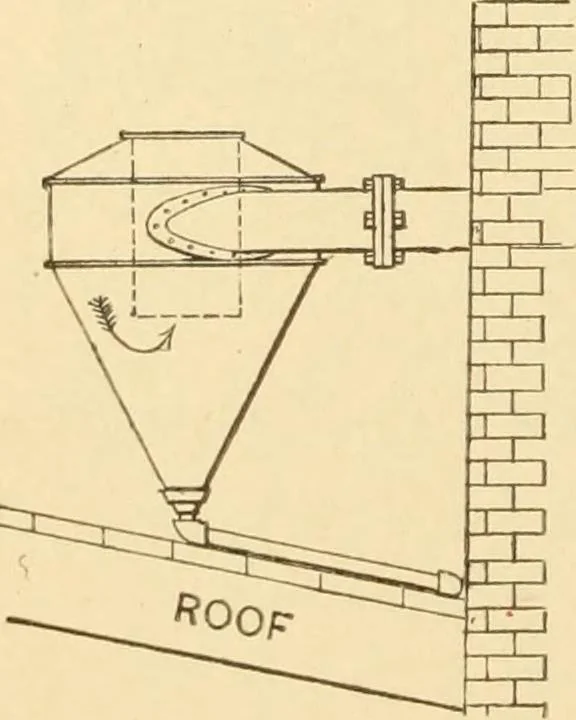

420. EXHAUST STEAM HEAD. —The ex-haust steam is deflected by perforated discs and capplates, which separate the water to drip betweenthe inner and outer shell. … 421. CENTRIFUGAL EXHAUST HEAD. - —The exhaust steam head enters the drum tangentially, throwing the particles of water against the outer surface to drip to the bottom. STEAM APPLIANCES. 115
