Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 130

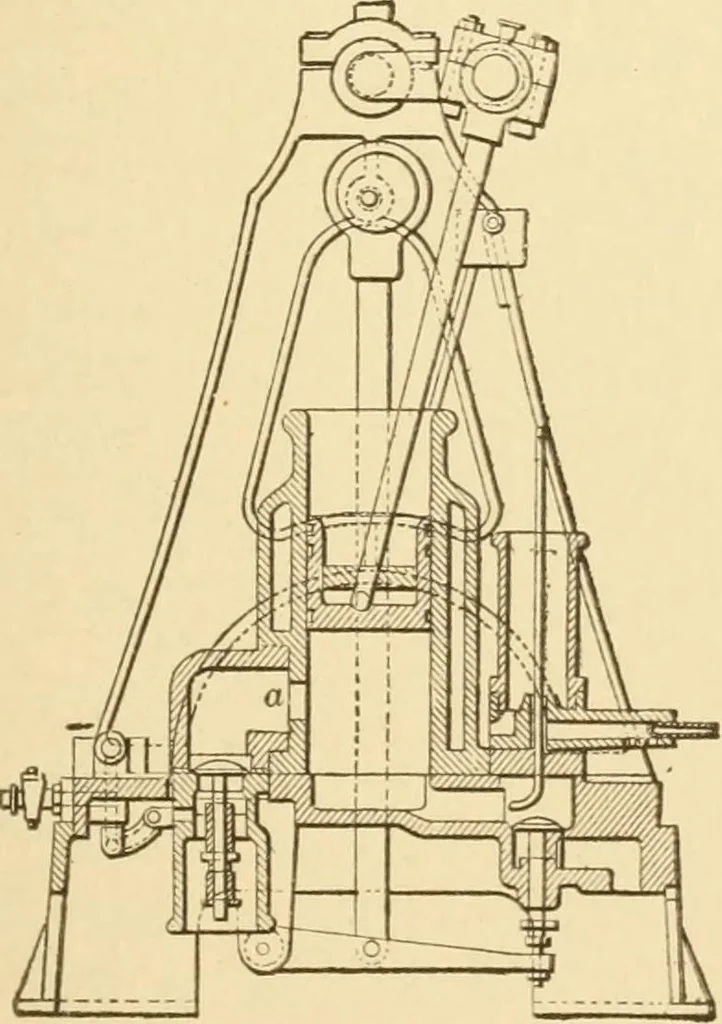

428. VERTICAL GASOLINE ENGINE, Webster pattern. The cylinder and waterjacket form part of the framework of the engine.A four-cycle type. … 429. VERTICAL GAS ENGINE, Root model. Four-cycle compression^with double explosion. ^ is a second-ary chamber and port, closed abouthalf-stroke, shutting off part of the chargeduring compression, which is explodedduring the impulse stroke of the piston. I20 MOTIVE POWER. 430. VERTICAL KEROSENE OIL…
Mechanical movements
