Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 154

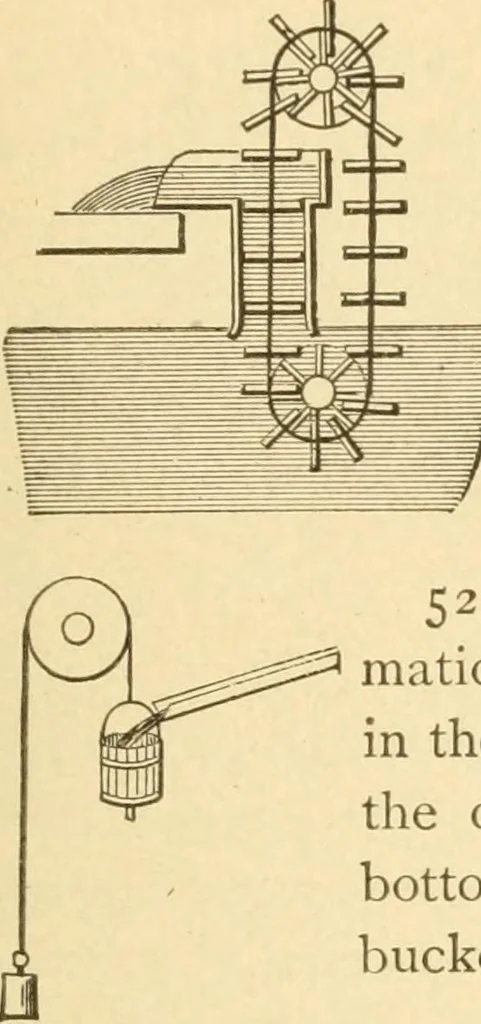

520. FAIRBURN BAILING SCOOP,for low-lift drainage or irrigation. The tiltingscoop may be connected to a walking beam ordirectly to a vertical engine. 521 r PENDULUM WATER LIFT.—A double seriesof scoops with flap valves and connecting pipes.The swinging of the pendulum frame alternatelyimmerses the… … 522. CHAIN PUMP.—An old device forraising water, now in use in many modifica-tions. 523. RECIPROCATING MOTION by the auto-matic action of a fall of water. A bucket with a valvein the bottom, which lifts and discharges the water bythe contact of the valve spindle with a stop at thebottom of the…
Mechanical movements
