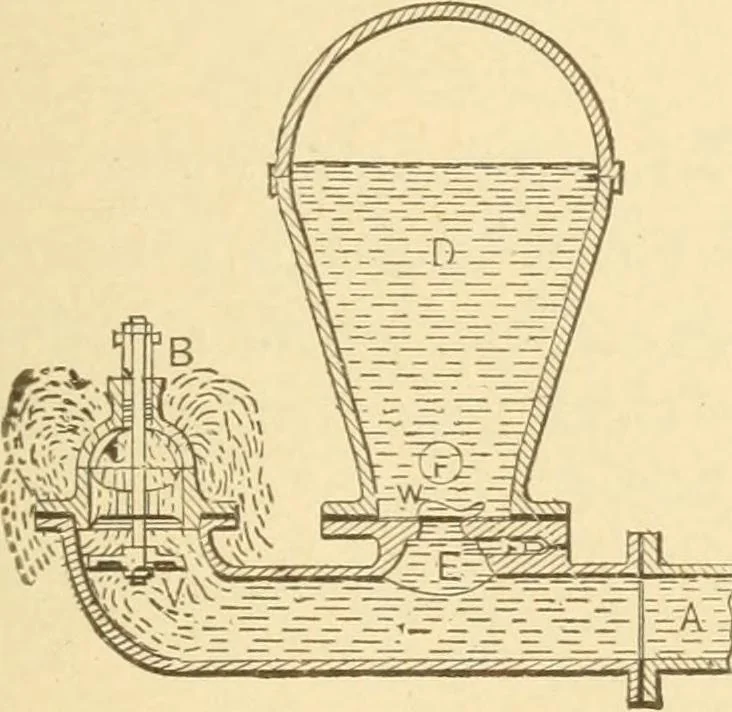

551. HYDRAULIC RAM, the « Montgol-fier idea for a iountain supplied by a waterram. 552. HYDRAULIC RAM.—A, Driving pipe; V, impact valve; C, valve-bonnet cage and spindle; W, force valve; F, out- -.B-^^^M jg|. ^Q force pipe; D, air chamber; E, snift- ^^^ ¥r^^^ i^^g hole, sometimes furnished with a…
