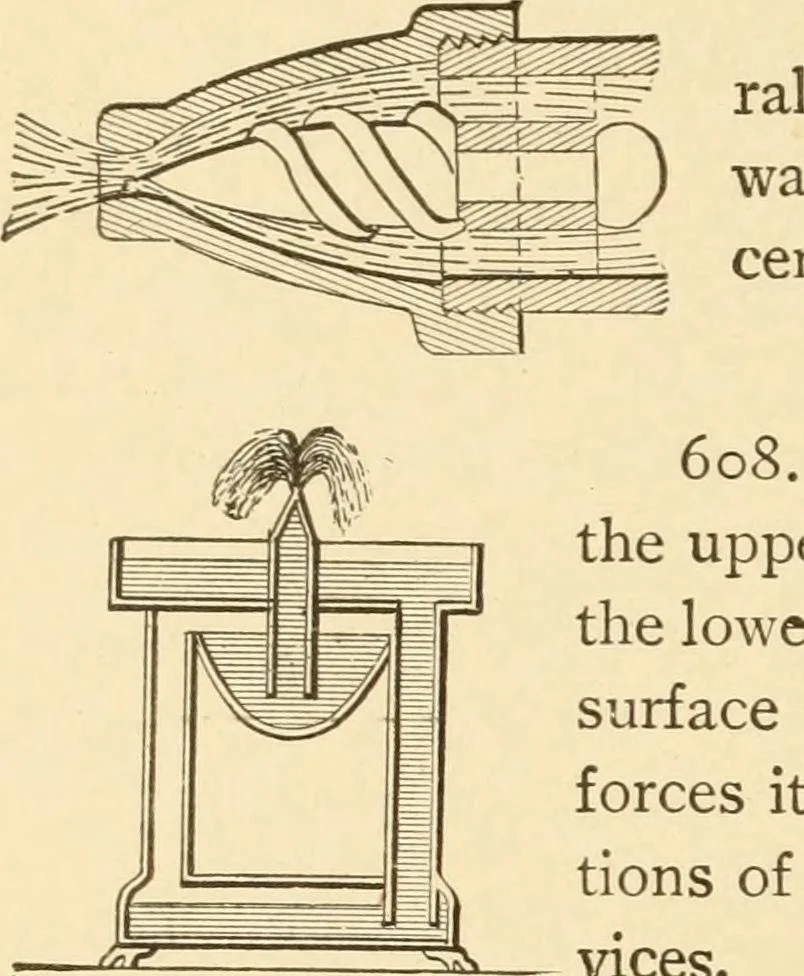

606. BALL AND JET NOZZLE.—The ball is heldin contact with the jet by the adhesion of the water tothe rolling surface. The ball should be very light. Theprinciple is the same for an air jet, only that a very lightball must be used. With the low ball in the conicalnozzle the ball can lift no higher… … 607. SPRAY JET NOZZLE.—The spi- . winjrs on the central cone set the1 ) water into a whirl, and induce a spray by^^^ centrifugal action. 608. HEROS FOUNTAIN.—The water inthe upper basin exerts a pressure upon the air inthe lower receptacle, which is transferred to thesurface of the water in the…
