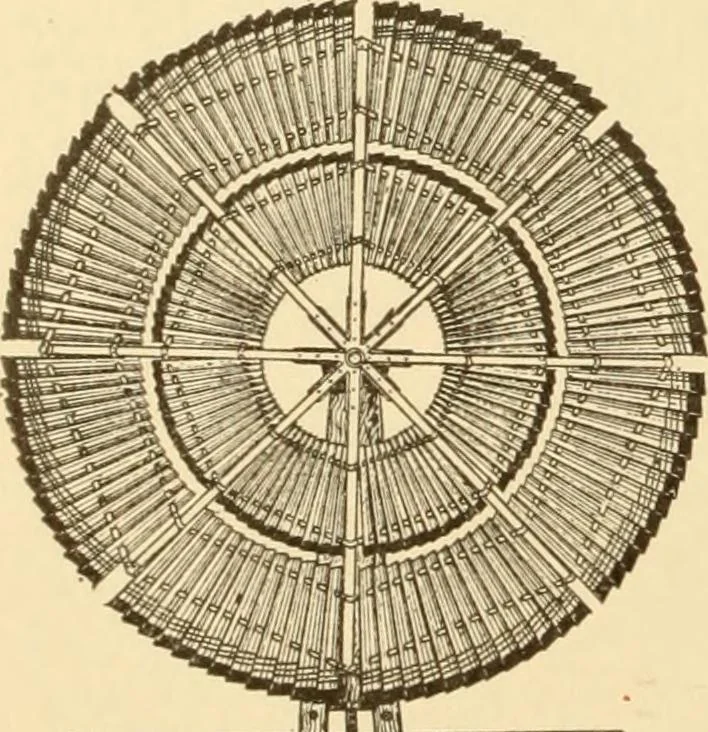

618. WINDMILL AND STEEL TOWER.— Mill with a single series of blades. The tail-pieceis pivoted to the mill-head, and is swung around toturn the face of the mill from the wind by a governor. … 619. MODERN WINDMILL.—Two series of concentric blades fastened to thepurlines of a braced radial frame. Theblades are fixed at an angle of about 35 ° tothe plane of the wheel. A peculiarly con-structed mechanism turns the wheel edge-wise to the wind to stop it, or to regulateits position in a high…
