Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 191

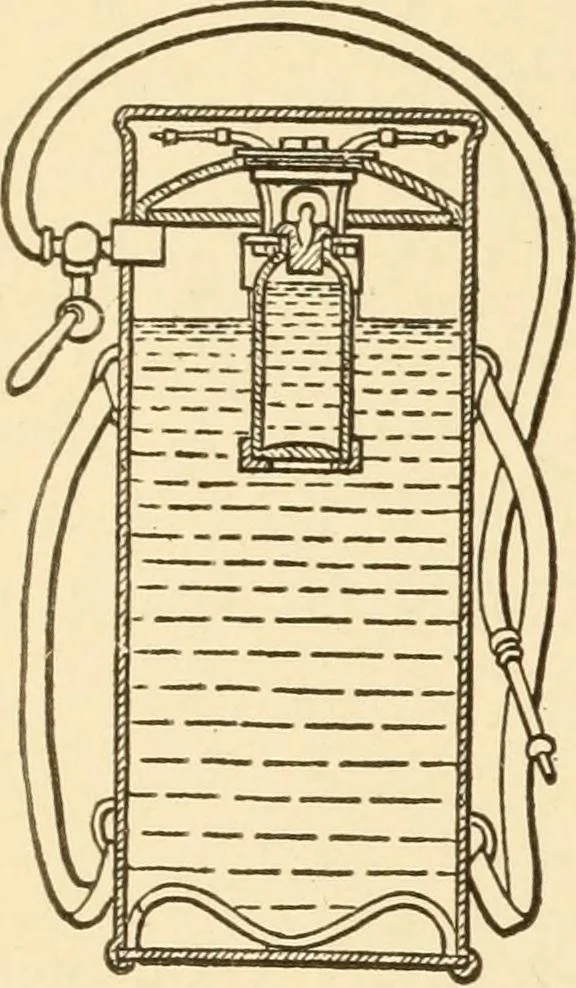

668. PORTABLE FIRE EXTINGUISHER.—The tank is nearly filled with a saturated solution ofcarbonate of soda and water. The glass cup is filledwith acid and sealed by the cap. To use it, turnthe tank quickly, top down, when the ball falls andbreaks the acid cup, producing pressure by the libera-tion of… … 669. FIRE EXTINGUISHER.—The tank is filled with a saturated solution of bicarbo-nate of soda in water to five-sixths of its capac-ity. A small glass bottle filled with sulphuricacid, with a loose lead stopper, is placed in acage at the top of the tank, and the cover ofthe tank fastened. To use,…
Mechanical movements
